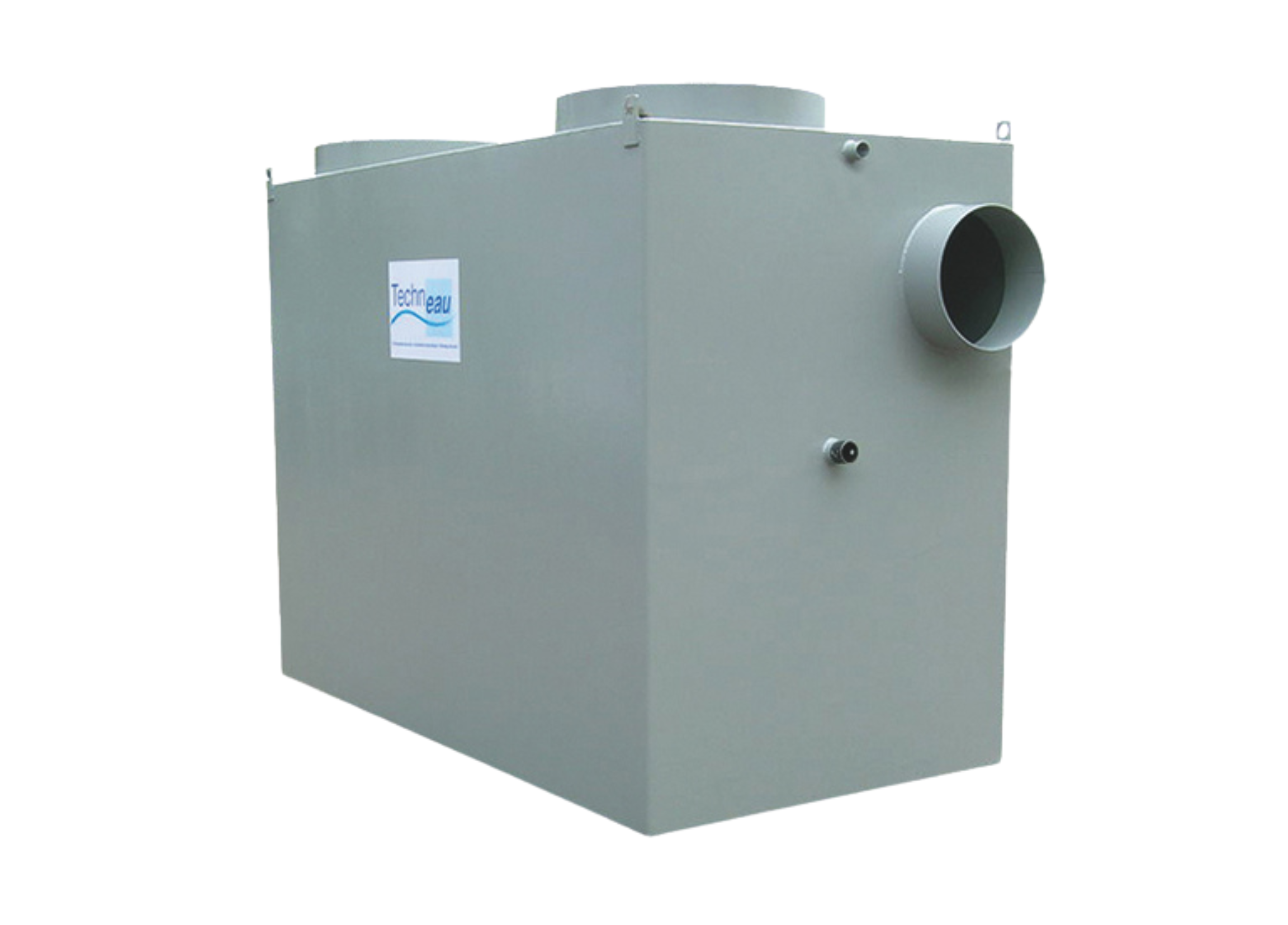

Oil separators with sludge trap coalescing filter & bypass (Steel)

Description

Tank in fabricated steel with lifting rings.
Epoxy resin/polyamide adduct-based bi-component coating.
Inlet aerator.
Steel inlet and outlet.
Vertical automatic stopper in polyethylene calibrated to 0.85.
Inlet with overflow level and siphon partition to supply the bypass.
Hydrocube range:
Light cover (pedestrian traffic) with locking screw.
Fully removable coalescing filter (CCF) conical partition module.
Available as reinforced model (depending on installation limitations).
HydroBac range:
Cylindrical manholes without cover. Removable coalescing filter.

Characteristics

For: storm water
Materials: Steel
Size (L/s): 1.5 to 35 L/s
Volume of the sludge trap: 150 to 3500
Volume of the separator: 200 to 3316

Options

Visual and audible alarm
Cylindrical polyethylene extension
